This document describes the specifications and characteristics of Yageo CC X7R series chip capacitors.

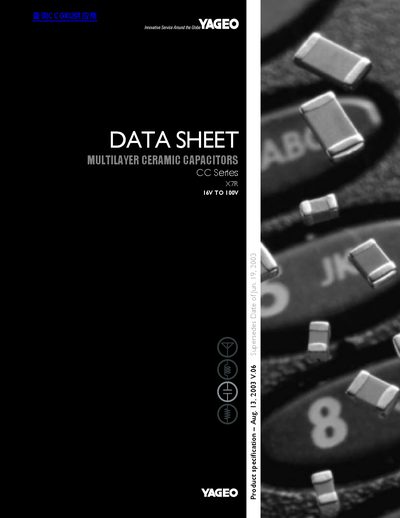

This document is a technical datasheet for the YAGEO CC Series of Surface Mount Multilayer Ceramic Capacitors (MLCC). The product features an X7R temperature coefficient and is available with rated voltages ranging from 16V to 100V. It provides detailed ordering information, construction details, capacitance ranges, and packaging specifications.
| Temperature Coefficient (TC) | <15% |
|---|---|
| Capacitance Tolerance | +/- 5%, +/- 10% |
| Operation Temperature Range | -55°C to +125°C |
| Rated Voltage Range | 16V to 100V |
The temperature characteristic/coefficient (TC) is less than 15% within the operation temperature range.
The CC Series capacitors are available with rated voltages from 16V to 100V.
