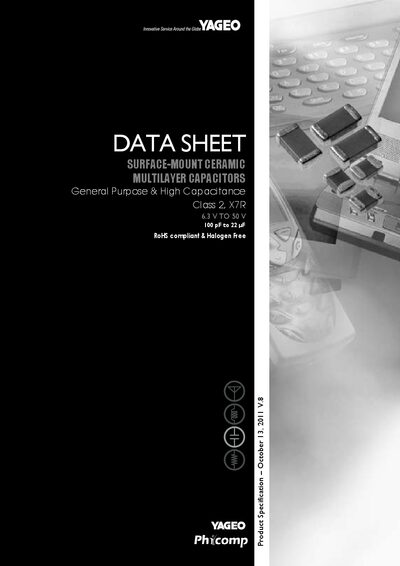

Yageo X7R series surface‑mount multilayer ceramic capacitors, 6.3 V‑50 V, 100 pF‑22 µF, RoHS compliant, with detailed dimensions, packaging and test data.
The X7R series from Yageo are general‑purpose, high‑capacitance Class 2 multilayer ceramic capacitors available in surface‑mount packages from 0201 to 1812. They cover a voltage range of 6.3 V to 50 V, capacitance values from 100 pF to 22 µF, and meet RoHS and halogen‑free requirements.
The datasheet provides ordering information, dimensional drawings, electrical characteristics, packaging options (paper/PE tape reels, blister reels, bulk cases), and detailed test procedures for solderability, moisture resistance, and endurance. Revision history tracks updates to dimensions, voltage ratings, and impedance data.
| Capacitance range | 100 pF – 22 µF |
|---|---|
| Rated voltage range | 6.3 V – 50 V |
| Capacitance tolerance | ±5 %, ±10 %, ±20 % |
| Operating temperature range | –55 °C to +125 °C |
| Dissipation factor (D.F.) | ≤ 10 % |
The X7R series covers capacitance values from 100 pF up to 22 µF.
Available rated voltages are 6.3 V, 10 V, 16 V, 25 V and 50 V.
Yes, the X7R series is RoHS compliant and halogen‑free.
