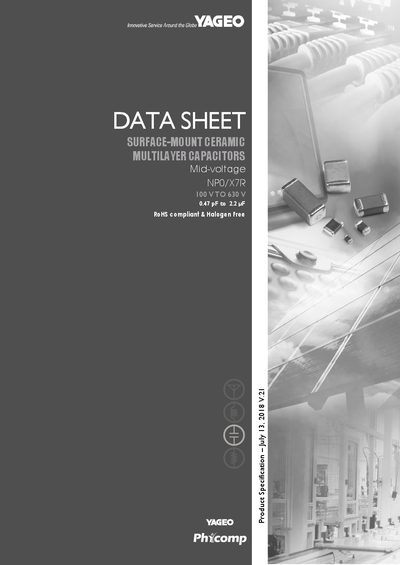

Product specification for YAGEO Mid-voltage NP0/X7R surface-mount ceramic multilayer capacitors covering capacitance, dimensions, and ordering information.
This datasheet details the specifications for YAGEO's Mid-voltage NP0/X7R series of surface-mount ceramic multilayer capacitors. The document covers capacitance ranges from 0.47 pF to 2.2 µF and rated voltages from 100 V to 630 V. It includes comprehensive ordering information, global part number definitions, and construction details for various package sizes ranging from 0201 to 1812.
| Capacitance Range | 0.47 pF to 2.2 µF |
|---|---|
| Rated Voltage | 100 V to 630 V |
| Material | NP0 / X7R |
| Termination Type | Lead-free |
| Compliance | RoHS compliant & Halogen Free |
They are used in PCs, hard disks, game PCs, power supplies, and LCD panels.
Yes, the capacitors are RoHS compliant and Halogen Free.
It consists of a rectangular block of ceramic dielectric with interleaved metal electrodes covered with plated tin.
