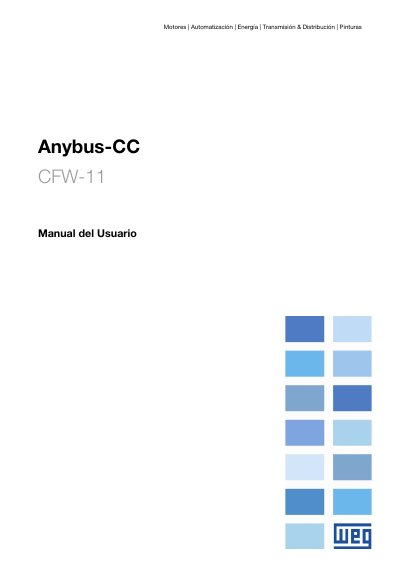

WEG CFW-11 Frequency Converter Anybus-CC Module User Manual

About this manual

This document is the user manual for the Anybus-CC communication module designed for the WEG CFW-11 frequency converter. It provides instructions on installing and configuring the module to support various industrial fieldbus protocols, including DeviceNet, Profibus DP, EtherNet/IP, Modbus TCP, and PROFINET IO. The manual also covers passive interfaces such as RS232 and RS485/422. This manual is written in Spanish.

What's inside

• Introduction to Fieldbus
• Accessory Kits
• DeviceNet Installation
• Profibus Installation
• EtherNet/IP Installation
• Modbus TCP Installation
• PROFINET Installation
• RS232 and RS485 Interfaces
• Parameterization
• Communication Faults and Alarms

Specifications

Frequently asked questions

What communication protocols does the Anybus-CC module support?

The module supports DeviceNet, Profibus DP-V1, EtherNet/IP, Modbus TCP, PROFINET IO, as well as passive RS232 and RS485/422 interfaces.

How do you configure the communication rate for the DeviceNet interface?

The communication rate can be configured to vary between 125 Kbit/s and 500 Kbit/s, depending on the cable length used.

What is the recommended power supply voltage for the DeviceNet accessory?

The recommended power supply voltage is 24V DC, with a range of 11V to 25V.
