This document describes the features and characteristics of the three-phase induction motor produced by WEG Indústrias S.A. The motor belongs to the IE2 high efficiency series, with a power output of 11 kW, frequency of 50 Hz, rated voltage of 380V, rated current of 22.1 A, insulation class of F, and enclosure rating of IP55. The motor is known for its high efficiency, low noise, and lightweight design.

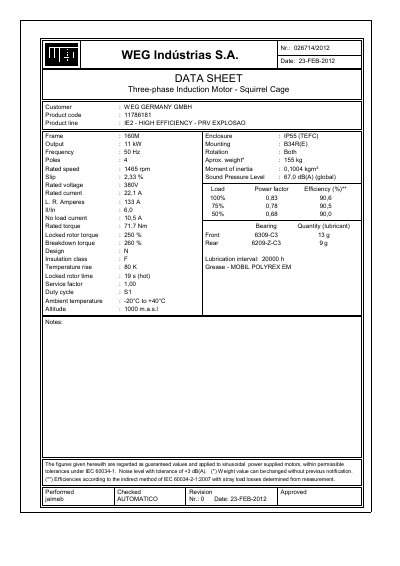

This document is a technical datasheet for the WEG 11786181, a three-phase squirrel cage induction motor manufactured by WEG Industrias S.A. The product belongs to the IE2 - HIGH EFFICIENCY line and features PRV EXPLOSAO technology.
The motor has an output of 11 kW, 4 poles, and operates at 50 Hz with a rated voltage of 380V. It is designed for both rotation directions and includes specific details regarding efficiency, torque characteristics, bearing specifications, and environmental operating limits.
| Output Power | 11 kW |
|---|---|
| Frequency | 50 Hz |
| Frame Size | 160M |
| Enclosure Type | IP55 (TEFC) |
| Efficiency at 100% | 90,6 % |
| Weight | 155 kg |
| Insulation Class | iF |
The product code is 11786181.
Yes, the rated rotation is specified as Both.
