This data sheet provides information about the WEG 160L three-phase induction motor, including power, frequency, poles, speed, rated voltage, rated current, rated torque, locked rotor torque, rated power factor, rated efficiency, temperature rise, locked rotor time, rated load, ambient temperature, altitude, enclosure, mounting, rotation, weight, moment of inertia, sound pressure level, etc.

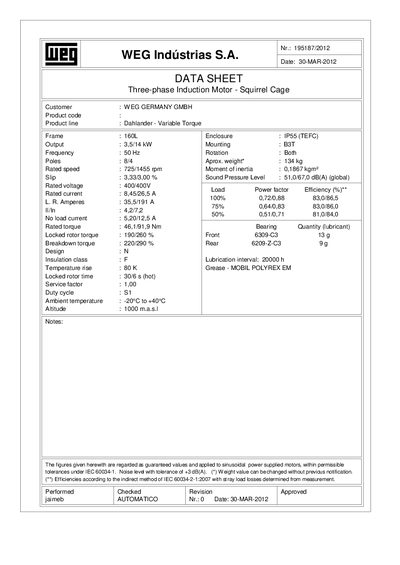

This document is a datasheet for the WEG model number 195187/2012, a three-phase induction motor featuring a squirrel cage design. The unit belongs to the Dahlander - Variable Torque product line and is designed for both rotation directions with an IP55 (TEFC) enclosure.
| Output Power | 3,5/14 kW |
|---|---|
| Frame Size | > 160L |
| Frequency | 50 Hz |
| Rated Current | 8,45/26,5 A |
| Approximate Weight | 134 kg |
| Rated Speed | 725/1455 rpm |
| Insulation Class | iF |
The motor uses a BST mounting configuration.
The service factor for this unit is 1,00.
