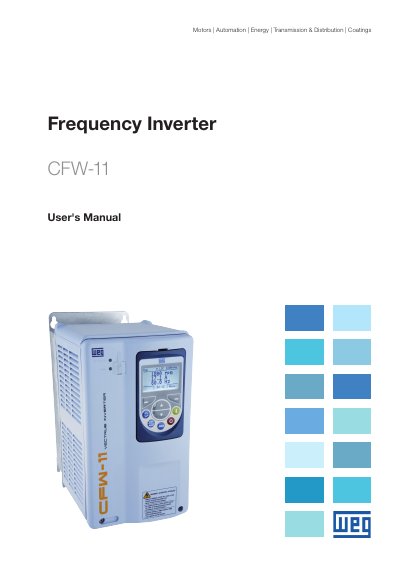

WEG CFW-11 Frequency Inverter User Manual
The WEG CFW-11 frequency inverter manual provides detailed safety instructions, installation guidelines, wiring diagrams, and operational procedures for qualified personnel. It includes sections on keypad and display functions, first‑time power‑up, troubleshooting, and optional accessories.
Technical specifications such as input voltage ranges, analog output limits, connector details, and dimensions of the various frame sizes are listed in the final chapters, along with information on optional 24 Vdc external control power supply kits.
WEG CFW-11 specifications
| Analog reference output voltage | +5.4 V ±5 % |
|---|---|
| Maximum analog output current | 2 mA |
| Rated coil voltage (relay) | 24 V (20‑30 V range) |
All WEG CFW-11 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What communication protocols does the Anybus-CC module support?
The module supports DeviceNet, Profibus DP-V1, EtherNet/IP, Modbus TCP, PROFINET IO, as well as passive RS232 and RS485/422 interfaces.
From: WEG CFW-11 Frequency Converter Anybus-CC Module User Manual
How do you configure the communication rate for the DeviceNet interface?
The communication rate can be configured to vary between 125 Kbit/s and 500 Kbit/s, depending on the cable length used.
From: WEG CFW-11 Frequency Converter Anybus-CC Module User Manual
How many digital inputs does the CFW‑11 have?
The inverter provides six isolated digital inputs for start/stop, direction, jog, and other functions.
How is the 24 Vdc external control power supply connected?
Connect the external 24 Vdc supply to terminals XC1:11 and XC1:13, which become inputs for the external power source in models with the option kit.
