WEG GERMANY MOTOR 1HP 2P B56C WCF1 technology data

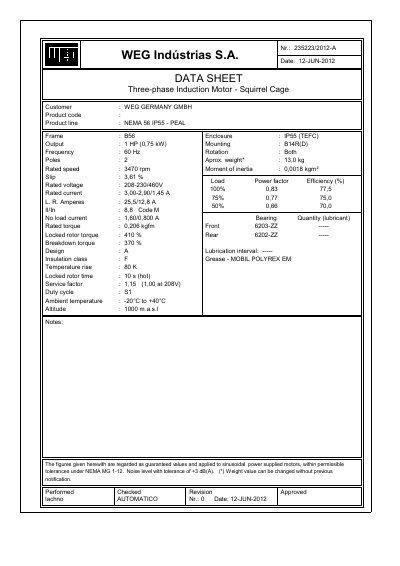

This document is a detailed parameter description of the WEG NEMA 56 IP55-PEAL motor.

Brand: WEG
Category: AC Motors
Document type: Datasheet
Language: English
Pages: 1
File format: PDF
File size: 11 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 16D02759A043B14DDEBBE90BE08B36DF
PDF: WEG GERMANY MOTOR 1HP 2P B56C WCF1 technology data PDF

About this manual

This document is a data sheet for a three-phase squirrel cage induction motor manufactured by WEG Industrias S.A. The product is specified for the customer WEG Germany GmbH and features a NEMA 56 frame with an IP55 (TEFC) enclosure. It is rated at 1 HP (0.75 kW) output with a 60 Hz frequency and 2 poles, supporting both rotation directions.

What's inside

Product Specifications
Electrical Ratings
Mechanical Data
Torque Characteristics
Insulation and Temperature
Notes and Conditions

Specifications

Output	1 HP (0,75 kW)
Frequency	60 Hz
Poles	2
Rated Speed	3470 rpm
Frame	BS6
Enclosure	IP55 (TEFC)
Rated Voltage	308-2501460V
Rated Current	3,00-2,90/1,45 A
Insulation Class	iF
Lubricant	MOBIL POLYREX EM
