This data sheet provides detailed information about a 90 kW three phase induction motor, including rated voltage, frequency, poles, rated speed, slip, rated current, load current, no load current, rated torque, locked rotor torque, breakdown torque, design, insulation class, locked rotor time, service factor, duty cycle, ambient temperature, altitude, enclosure, mounting, rotation, weight, moment of inertia, sound pressure level, etc.

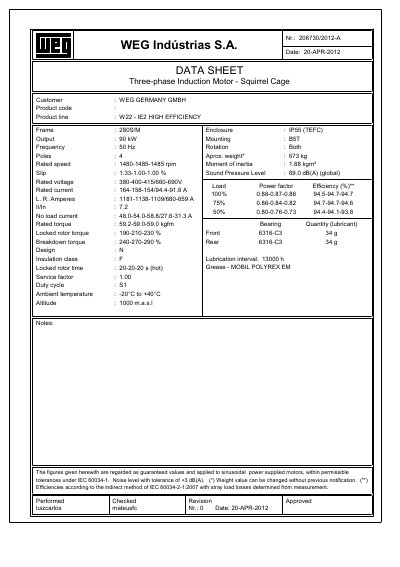

This document is a datasheet for a WEG W22 series three-phase squirrel cage induction motor. The specific unit described has an output of 90 kW, a frame size of 280S/M, and is designed for both rotation directions with a 50 Hz frequency.
| Product line | W22 - IE2 HIGH EFFICIENCY |
|---|---|
| Frame | 280S/M |
| Output | 90 kw |
| Frequency | 50 Hz |
| Poles | 4 |
| Rated speed | 1480-1485-1485 rpm |
| Rated voltage | 380-400-415/660-690V |
| Efficiency (100%) | 94.5-94.7-94.7 |
| Insulation class | F |
| Ambient temperature | -20°C to +40°C |
This WEG W22 motor belongs to the W22 - IE2 HIGH EFFICIENCY product line.
The motor can operate in an ambient temperature range of -20°C to +40°C.
