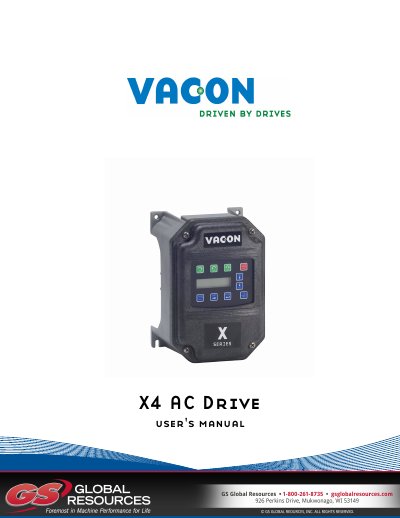

Vacon X4 AC Drive User's Manual

This manual provides installation, startup, parameter programming, and operation instructions for the Vacon X4 AC Drive.

Brand: Vacon
Category: Motor
Document type: User Manual
Language: English
Pages: 240
File format: PDF
File size: 9.7 MB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 9B374FB533AB4B3863E12D72A2A6CBE5
PDF: Vacon X4 AC Drive User's Manual PDF

About this manual

The Vacon X4 AC Drive User's Manual covers the complete lifecycle of the drive, from receiving and installation to operation and troubleshooting. It details technical characteristics, wiring practices, and the use of the keypad for programming parameters.

What's inside

Introduction
Technical Characteristics
Receiving and Installation
Connections
Keypad Operation and Programming
Using Macro Mode
X4 Parameters
Troubleshooting and Fault Codes

Specifications

Output Frequency Range	0.0-400.0 Hz
Output Voltage Range	0-600 V
Output Current Range	0.0-200.0 A
DC Bus Voltage	0 - 1000 Vdc
PWM Frequency	0.6-16.0 kHz

Frequently asked questions

What is the default language of the X4 drive?

The default language setting is English.

How can parameters be addressed via Modbus?

Add 40000 to the parameter number to address it via Modbus.

What is the default ramp select setting?

The default ramp select setting is ART-DI.

Download PDF (9.7 MB)
