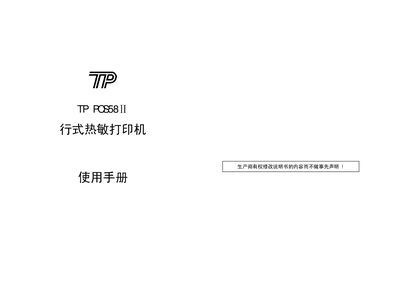

The TP POS58II thermal printer user manual covers installation, connections, paper loading, cleaning, self‑test and troubleshooting.
This manual provides step‑by‑step instructions for setting up the TP POS58II line‑type thermal printer, including unpacking, connecting to a computer via serial or parallel ports, attaching a cash drawer, and installing the power adapter. Detailed guidance is given for loading the 57.5 mm wide thermal paper roll and for cleaning the print head to maintain print quality.
The document also describes operation controls, self‑test procedures, command reference for ESC/POS commands, and a troubleshooting section that addresses paper jams, misfeeds, unclear printing, and communication errors. Service contact information for TP repair centers in Shenzhen and Beijing is included. This manual is written in Chinese.
| Paper width | 57.5 ± 0.5 mm |
|---|---|
| Maximum paper roll outer diameter | φ50 mm |
| Minimum paper roll inner diameter | φ13 mm |
| Paper thickness | 53–60 g/m² |
| Serial interface | 25‑pin D‑sub, RS‑232C compatible |
| Parallel interface | 8‑bit DB25 |
| Cash drawer interface | RJ‑11 6‑pin |
| Power supply | External adapter (included) |
Turn off the printer, wait about 10 seconds for the print head to cool, then open the cover and carefully remove the jammed paper.
Power off the printer, remove any paper, use a clean cotton swab lightly dampened with alcohol to wipe the print head, let it dry completely, then close the cover and run a self‑test.
Press and hold the SEL key while turning on the printer, then release the key; the printer will print a self‑test page showing status information.
Use a suitable serial or parallel interface cable; the serial port is a 25‑pin D‑sub compatible with RS‑232C, and the parallel port is a DB25 connector.
