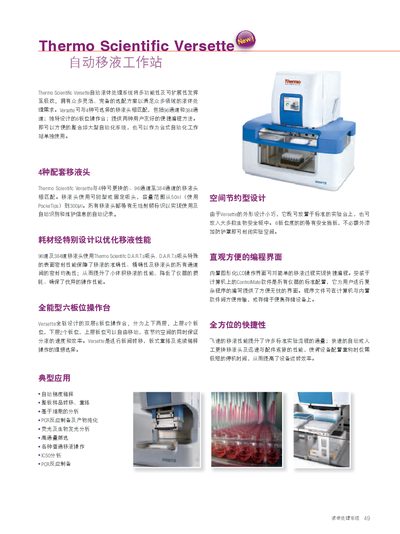

The Thermo Scientific Versette liquid handling system is a versatile, expandable workstation with interchangeable pipette heads, a six‑plate deck and…
Thermo Scientific Versette is a modular liquid handling workstation that can be equipped with up to four interchangeable pipette heads ranging from 96‑channel to 384‑channel configurations. The system features a dual‑layer six‑plate deck, compact footprint for bench or biosafety cabinet placement, and a graphical LCD interface paired with ControlMate software for easy programming.
The Versette platform includes optional accessories such as pump modules, cleaning stations, and gradient dilution frames. Basic specifications include a 100‑240 V AC power supply, <350 W maximum power, USB and RS‑232 interfaces, and operating conditions from +15 °C to 40 °C with humidity below 85 %. This manual is written in Chinese.
| Power Supply | 100‑240 V AC, 50/60 Hz |
|---|---|
| Operating Conditions | +15 °C to 40 °C, humidity <85 % |
| Maximum Power | <350 W |
| Interface | USB, RS‑232 |
| 96‑Channel Pipette Head Capacity | 0.5‑30 µl |
| 384‑Channel Pipette Head Capacity | 1.0‑100 µl |
The system has a six‑plate deck arranged in two layers: four positions on the upper layer and two on the lower layer.
ControlMate software installed on a PC provides a graphical interface for creating and transferring pipetting programs.
