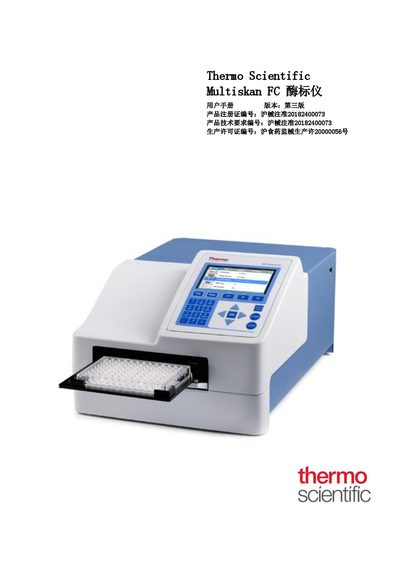

User manual for the Thermo Scientific Multiskan FC enzyme plate reader covering installation, operation, maintenance and troubleshooting.
The Thermo Scientific Multiskan FC is a filter‑based enzyme plate reader designed for measuring absorbance of 96‑ and 384‑well plates in the 340–850 nm range. It includes vibration and incubation functions and can be operated via its built‑in interface or the SkanIt software.
This manual provides safety information, step‑by‑step installation, detailed description of hardware components, software menus, measurement parameters, maintenance procedures, technical specifications and troubleshooting guidance. This manual is written in Chinese.
| Dimensions (W×D×H) | 290 mm × 400 mm × 220 mm |
|---|---|
| Weight | 8.5 kg (18.7 lb) |
| Power supply | AC 220 V ± 22 V, 50 Hz ± 1 Hz |
| Maximum power consumption | 100 VA (standby 8 VA) |
| Wavelength range | 340 nm – 850 nm |
| Number of filter positions | 8 |
| Detector type | Silicon photodiode |
| Absorbance measurement range | 0 – 4 Abs |
| Absorbance accuracy (405 nm, normal mode) | ±1 % (0.3–3 Abs), ±2 % (3–4 Abs) |
The instrument weighs 8.5 kg (approximately 18.7 lb).
It can measure absorbance from 340 nm to 850 nm.
The filter wheel provides 8 positions.
It requires AC 220 V ± 22 V at 50 Hz ± 1 Hz.
