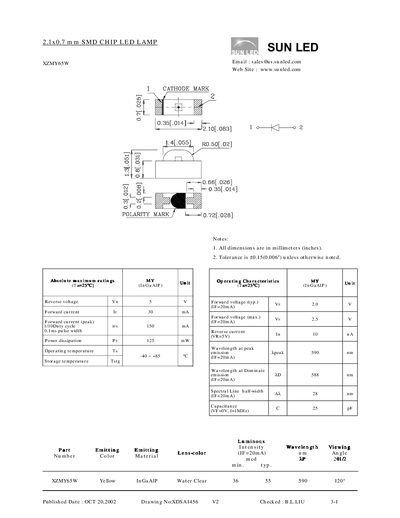

Technical specifications, dimensions, electrical characteristics and soldering instructions for the SunLED XZMY65W SMD chip LED lamp.
The SunLED XZMY65W is a 2.1 × 0.7 mm SMD chip LED lamp. This datasheet provides its mechanical dimensions, tolerance (+0.15 mm), and package details (2000 pcs per reel). Electrical ratings include a typical forward voltage of 2.0 V at 20 mA, a reverse voltage of 5 V, and a maximum power dissipation of 125 mW.
Spectral data show a peak wavelength of 588 nm with a half‑width of 28 nm. The document also contains recommended SMT reflow soldering parameters (peak 230 °C, preheat 140‑160 °C) and a derating curve for forward current versus ambient temperature.
| Dimensions (L × W) | 2.1 mm × 0.7 mm |
|---|---|
| Tolerance | +0.15 mm (0.006") |
| Forward voltage (typ., IF=20 mA) | 2.0 V |
| Forward current (IF=20 mA) | 30 mA |
| Reverse voltage | 5 V |
| Power dissipation | 125 mW |
| Spectral line half‑width | 28 nm |
| Capacitance (VF=0 V, f=1 MHz) | 25 pF |
| Package quantity | 2000 pcs / reel |
The typical forward voltage at 20 mA is 2.0 V.
The recommended peak reflow temperature is 230 °C, with a preheat range of 140 °C to 160 °C.
The device can dissipate up to 125 mW.
