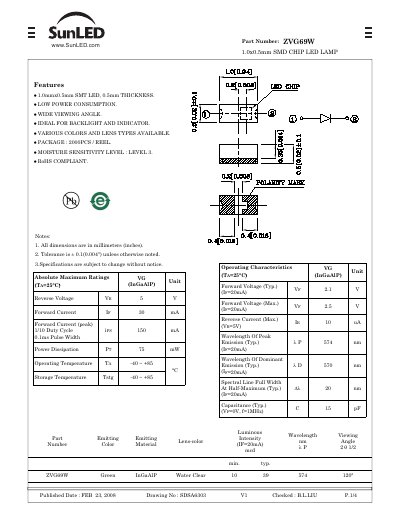

ZVG69W 1.0x0.5mm SMD CHIP LED LAMP is a green light emitting diode produced by SunLED. Its features include low power consumption, wide viewing angle, and is ideal for backlight and indicator.
The ZVG69W is a 1.0 mm × 0.5 mm surface‑mount LED lamp offered by SunLED. It features low power consumption, a wide 120° viewing angle, and is available in various colors and lens types, making it suitable for backlight and indicator applications. The device is RoHS compliant and supplied in reels of 2000 pieces.
Key specifications include a typical forward voltage of 2.1 V at 20 mA, a maximum forward current of 30 mA, and a luminous intensity of 10 mcd (green, InGaAlP). The LED operates from –40 °C to +85 °C and has a moisture‑sensitivity level of 3. Recommended soldering patterns and packaging details are also provided.
| Wavelength (Peak) | 574 nm |
|---|---|
| Forward Voltage (Typ., IF=20mA) | 2.1 V |
| Forward Voltage (Max., IF=20mA) | 2.5 V |
| Maximum Forward Current | 30 mA |
| Power Dissipation | 75 mW |
| Operating Temperature | -40 °C to +85 °C |
| Moisture Sensitivity Level | Level 3 |
| RoHS Compliance | Yes |
The typical forward voltage is 2.1 V.
The maximum forward voltage is 2.5 V.
The soldering pattern tolerance is ±0.1 mm.
The device has a moisture sensitivity level of Level 3.
