This document introduces a SMD CHIP LED lamp with dimensions of 3.2mmx1.6mm, featuring low power consumption and wide viewing angle. It is ideal for backlight and indicator applications.

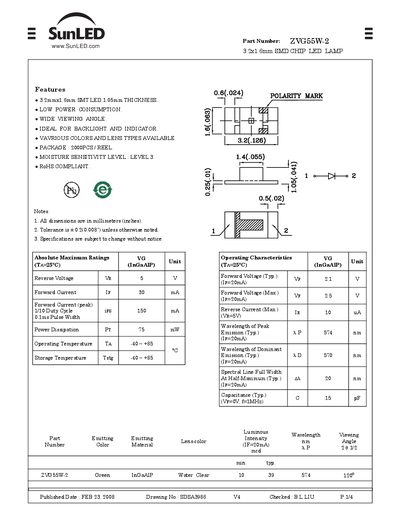

The SunLED ZVG55W-2 is a 3.2 × 1.6 mm SMD chip LED lamp designed for backlight and indicator applications. It offers low power consumption, a wide viewing angle, and is available in various colors and lens types. The device is RoHS compliant and supplied in reels of 2,000 pieces.
The datasheet provides absolute maximum ratings, operating characteristics, spectral data, recommended reflow soldering profile, tape dimensions, and packing specifications. It also includes sorting accuracy notes for wavelength, luminous intensity, and forward voltage.
| Package | 2000 pcs/reel |
|---|---|
| Forward Current (IF) | 380 mA |
| Power Dissipation | 15 mW |
| Operating Temperature | -40 °C to +85 °C |
The recommended reflow temperature is 145 °C – 260 °C.
Yes, the LED is RoHS compliant.
The maximum reverse voltage is 5 V.
Each reel contains 2,000 pieces.
