3.2mmx1.6mm SMD CHIP LED LAMP Part Number: ZVG55W-A2 is a LED lamp produced by SunLED company. Its features are low power consumption, wide viewing angle and suitable for backlight and indicator.

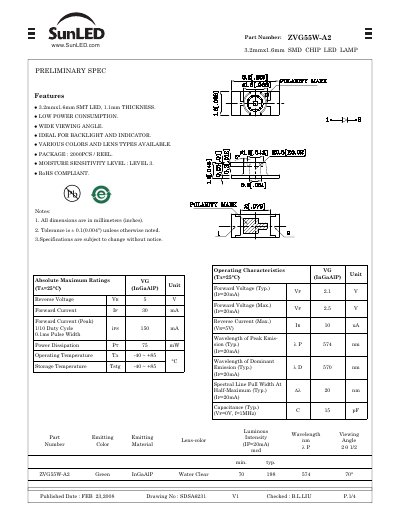

This document is a preliminary specification sheet for the SunLED ZVG55W-A2, a 3.2mm x 1.6mm surface-mount device (SMD) chip LED. The component emits green light using InGaAlP material and features a water clear lens with a typical luminous intensity of 70 mcd at 20mA.
The datasheet provides absolute maximum ratings, operating characteristics such as forward voltage and wavelength, and mechanical details including tape specifications for reel packaging. It notes the device is RoHS compliant and suitable for backlight and indicator applications.
| Part Number | ZVG55W-A2 |
|---|---|
| Emitting Material | InGaAlP |
| Dimensions | 3.2mm x 1.6mm |
| Thickness | 1.1mm |
| Forward Current (Max) | 30 mA |
| Operating Temperature | -40 ~ +85 °C |
The device supports a 1/10 Duty Cycle with a pulse width of 0.1ms.
Yes, the datasheet states that the product is RoHS Compliant.
