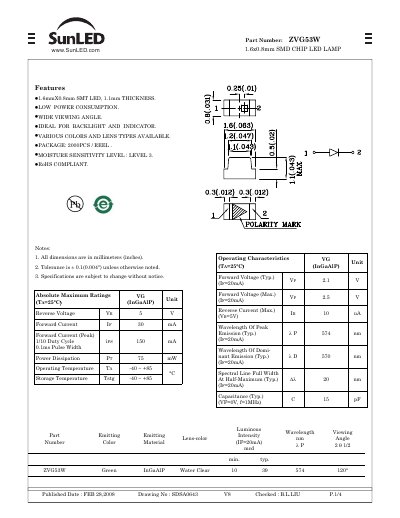

www.SunLED.com ZVG53W 1.6x0.8mm SMD CHIP LED LAMP is a green light LED lamp produced by SunLED. This lamp is characterized by low power consumption, wide viewing angle, multiple colors, moisture resistance, and RoHS compatibility.
The SunLED ZVG53W is a 1.6 mm × 0.8 mm SMD chip LED lamp with a green InGaAlP emitting material and a water‑clear lens. It offers low power consumption, a wide 120° viewing angle, and is suitable for backlight and indicator applications. The device is RoHS compliant and supplied in reels of 2000 pieces.
The datasheet provides detailed electrical characteristics such as a typical forward voltage of 2.1 V (max 2.5 V at 20 mA), reverse current up to 10 µA, and a power dissipation of 75 mW. Mechanical data, recommended soldering patterns, tape specifications, and packaging/label requirements are also included.
| Forward Voltage (typical, 20 mA) | 2.1 V |
|---|---|
| Forward Voltage (max, 20 mA) | 2.5 V |
| Reverse Current (max, 5 V) | 10 µA |
| Power Dissipation | 75 mW |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Capacitance (1 MHz) | 15 pF |
| Reverse Voltage | 5 V |
| Forward Current (max) | 30 mA |
| Peak Forward Current (1/10 duty) | 150 mA |
The typical forward voltage at 20 mA is 2.1 V.
It can operate from –40 °C to +85 °C.
The device is supplied in reels of 2000 pieces.
Yes, the LED is RoHS compliant.
