This document describes a 1.6x0.6mm right angle SMD chip LED lamp with features such as low power consumption and wide viewing angle, suitable for backlight and indicator applications.

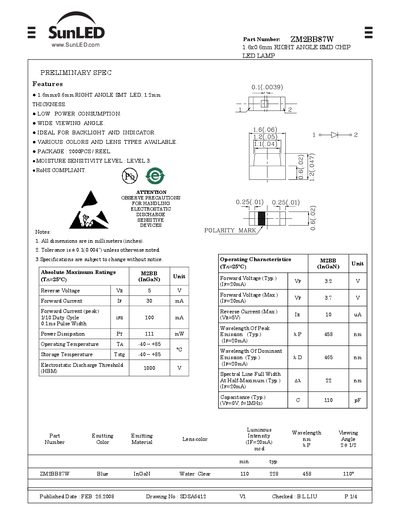

This document is a preliminary specification sheet for the SunLED ZM2BB87W, a 1.6x0.6mm right-angle SMD chip LED lamp designed for backlight and indicator applications. The device features an InGaN structure with a typical peak emission wavelength of 458 nm (blue) and is available in various colors and lens types.
| Package Dimensions | 1.6mm x 0.6mm |
|---|---|
| Chip Type | InGaN |
| Reverse Voltage | 5 V |
| Forward Current (Max) | 30 mA |
| Power Dissipation | 111 mW |
| Operating Temperature Range | -40 ~ +85 °C |
| Moisture Sensitivity Level | Level 3 |
The recommended reflow temperature range is 145°C to 260°C.
Yes, the product is RoHS compliant.
