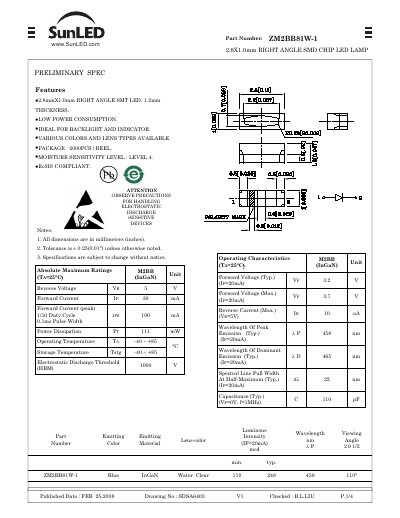

SunLED ZM2BB81W-1 2.8X1.0mm RIGHT ANGLE SMD CHIP LED LAMP Specification, including pinout diagram, size, package, electrical parameters, visible spectrum and other information.
The ZM2BB81W-1 is a 2.8 mm × 1.0 mm right‑angle surface‑mount chip LED made of InGaN, offering low power consumption and ideal for backlight and indicator applications. It is available in various colors and lens types, with a typical luminous intensity of 110 mcd and a viewing angle of 110°.
Key electrical characteristics include a typical forward voltage of 3.2 V (max 3.7 V) at 20 mA, reverse voltage rating of 5 V, and operation from –40 °C to +85 °C. The device complies with RoHS, has a moisture‑sensitivity level of 4, and is supplied in reels of 2000 pieces. This manual is written in Chinese.
| Peak Wavelength (λP) | 458 nm |
|---|---|
| Typical Forward Voltage (VF) | 3.2 V |
| Maximum Forward Voltage (VF) | 3.7 V |
| Maximum Reverse Voltage (VR) | 5 V |
| Operating Temperature | -40 ~ +85 °C |
| Moisture Sensitivity Level | Level 4 |
| RoHS Compliance | Yes |
The recommended soldering pattern tolerance is ±0.1 mm.
The LED has a moisture sensitivity level of Level 4.
The maximum reverse voltage rating is 5 V.
Yes, the device is RoHS compliant.
