This is a 4.0x4.0mm right angle surface mount LED lamp with blue emitting color, InGaN emitting material, water clear lens color, 110mcd luminous intensity, 458nm wavelength, and 120° viewing angle.

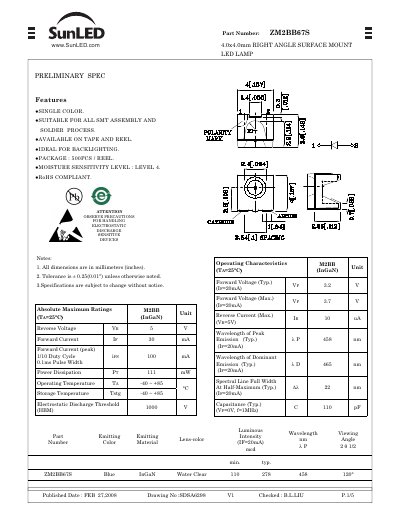

The ZM2BB67S is a 4.0 × 4.0 mm right‑angle surface‑mount blue LED lamp designed for SMT assembly and backlighting applications. It features a single color, RoHS compliance, and is available on tape and reel.
The handbook lists electrical ratings such as a typical forward voltage of 3.2 V at 20 mA, a reverse voltage of 5 V, and a maximum power dissipation of 111 mW. It also includes handling precautions for the silicone encapsulated package, recommended soldering patterns, tape sorting tolerances, and packaging specifications (500 pcs/reel, Moisture Sensitivity Level 4). This manual is written in Chinese.
| Peak Wavelength (λP) | 458 nm |
|---|---|
| Forward Voltage (Typ., IF=20mA) | 3.2 V |
| Reverse Voltage | 5 V |
| Forward Current | 30 mA |
| Power Dissipation | 111 mW |
| Operating Temperature | -40 °C ~ +85 °C |
| Moisture Sensitivity Level | Level 4 |
The recommended soldering pattern tolerance is ± 0.1 mm.
