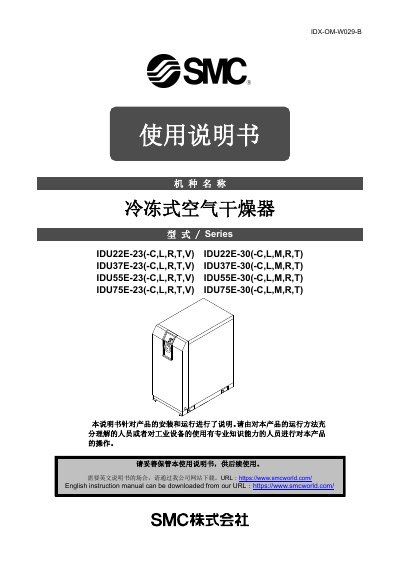

The SMC IDU Series refrigerated air dryer user manual provides safety warnings, installation, operation, maintenance, and specifications.
This manual explains safe handling of the SMC IDU Series air dryer, including required safety precautions, hazard classifications, and proper personal protective measures before installation or maintenance. It emphasizes that only qualified personnel should operate or service the unit.
The document covers transportation, installation, wiring, operation, shutdown, regular inspections, troubleshooting, and detailed specifications. Optional configurations (C, L, M, R, T, V) and their specific safety notes are also included, along with inspection record forms. This manual is written in Japanese.
| Minimum Operating Pressure | 1.6 MPa |
|---|---|
| Electronic Timer Drain Supply Voltage | AC230V±10% (50Hz) |
| ON Time | 0.5 sec – 2.0 sec |
| OFF Time | 30 sec |
Turn the main switch to OFF, wait three minutes, then turn it back to ON before restarting.
