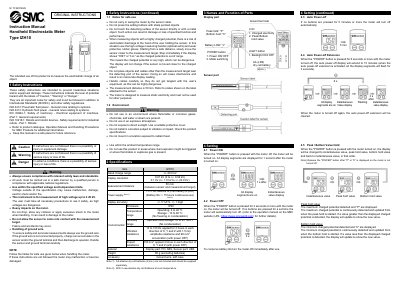

The SMC IZH10 handheld electrostatic meter instruction manual provides safety guidelines, specifications, operation, error handling, and maintenance procedures.
The manual explains the intended use of the IZH10 handheld electrostatic meter for measuring electrostatic charge and outlines comprehensive safety instructions, including cautions, warnings, and environmental restrictions to prevent injury and equipment damage. It also details the required power source (1.5 V AA alkaline batteries) and handling precautions such as proper grounding and safe distance.
Operational sections cover the meter’s settings—power on/off, auto‑power‑off, peak/bottom hold, zero‑clear, backlight, and battery‑low indicator—along with error indications and troubleshooting steps. The document finishes with specifications, maintenance guidelines, disposal instructions, and contact information for SMC.
| Rated charge range | ± 20.0 kV |
|---|---|
| Display resolution | 0.01 kV (0 to ± 0.99 kV) / 0.1 kV (± 1.0 kV to ± 20.0 kV) |
| Measurement distance | 50 mm |
| Power supply | 1.5 V AA alkaline dry cell batteries (2 pcs) |
| Display accuracy | ± 5 % FS ± 1 digit |
| Enclosure protection rating | IP40 |
| Operating temperature range | 0 °C to 40 °C |
| Storage temperature range | -10 °C to 60 °C |
| Humidity range | 35 %–85 % RH |
| Weight (without batteries) | 85 g |
Press the POWER and LIGHT buttons simultaneously for at least 6 seconds while the meter is on; the display will be cleared to zero and the meter returns to measurement mode.
The sensor should be positioned 50 mm away from the measurement target.
