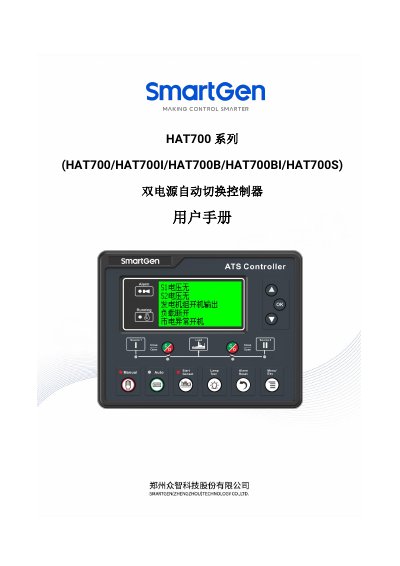

This manual covers the operation, configuration, and maintenance of SmartGen HAT700 series dual-power automatic transfer controllers for generator sets.
The SmartGen HAT700 series is an intelligent dual-source synchronous switching module designed for automated power management. It features a microprocessor core that precisely detects voltage anomalies in two three-phase sources and outputs control signals to switch between them, suitable for PC, CB, and CC level switches. This manual is written in Chinese.
| Working Voltage (DC) | 8.0V to 35.0V continuous |
|---|---|
| Working Temperature | -25~+70°C |
| Protection Rating | IP55 (with rubber ring) |
| LCD Display Resolution | 132x64 pixels with backlight |
The system type can be set to S1 City Power/S2 City Power, S1 City Power/S2 Generator, S1 Generator/S2 City Power, or S1 Generator/S2 Generator.
It uses an RS485 isolated interface with the ModBus communication protocol.
