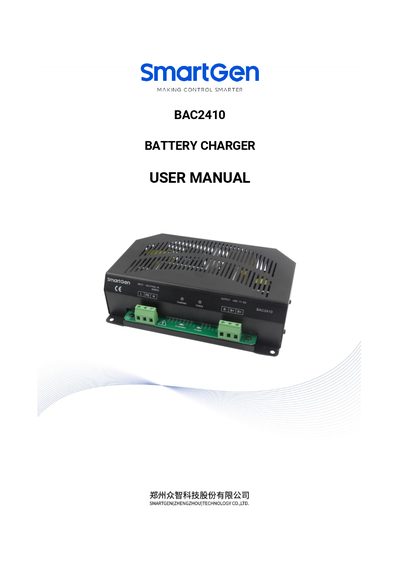

User manual for the SmartGen BAC2410 battery charger covering overview, performance, charging principle, specifications and operation.
The SmartGen BAC2410 is a float charger designed for 24 V lead‑acid engine starter batteries, providing automatic two‑stage charging (constant current then constant voltage) to protect against over‑charging and extend battery life. It features a built‑in PFC circuit, current protection, LED status indicators and a compact, lightweight design.
The manual details the charger’s performance characteristics, parameter settings, efficiency curve, wiring connections, operation instructions and physical dimensions, helping users install, configure and safely operate the device.
| Input Voltage | AC 100‑277 V |
|---|---|
| Maximum Input Voltage | AC 90‑305 V |
| Output Voltage (no‑load) | 27.6 V ±1 % |
| Rated Charging Current | 10 A ±2 % |
| Maximum Output Power | 290 W |
| Efficiency (110 V input) | >86 % |
| Efficiency (220 V input) | >88 % |
| Power Factor (110 V input) | >0.99 |
| Power Factor (220 V input) | >0.95 |
| Weight | 1.15 kg |
| Dimensions (L×W×H) | 205.5 mm × 131 mm × 55 mm |
The charger accepts a wide AC input range of 100 V to 277 V (nominal) and up to 305 V maximum.
