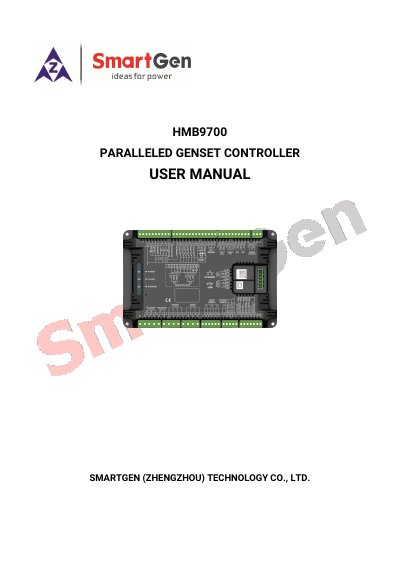

This manual covers the operation, specifications, wiring, and commissioning of the SmartGen HMB9700 paralleled genset controller for automatic generator…
The SmartGen HMB9700 is a paralleled genset controller designed for manual or auto parallel system generators with similar or different capacities. It supports single unit constant power output and mains paralleling, enabling automatic start/stop, parallel running, data measurement, alarm protection, remote control, and communication functions. This manual is written in Chinese.
| Working Voltage Range | DC8V - DC35V continuous |
|---|---|
| AC Frequency Range | 5Hz -75Hz |
| Resolution (Speed Sensor) | 0.1V |
| Digital Output 7 Type | DC30V DC power supply output (transistor output) |
| RS485 Port Baud Rate | 9600 baud rate |
| Case Dimensions | 248 mm x 158 mm x 49 mm |
The controller supports a continuous DC working voltage range from 8V to 35V.
Yes, it is suitable for single unit constant power output and mains paralleling.
It supports RS485 with MODBUS protocol and CAN BUS port for J1939 interface.
