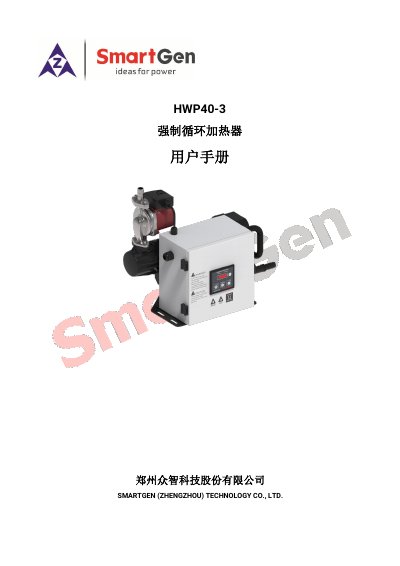

The manual provides overview, specifications, installation, operation, maintenance, wiring and dimensions for the Smartgen HWP40-3 forced circulation heater.
The Smartgen HWP40-3 is an intelligent forced‑circulation engine water heater designed for engines with a displacement of 15‑30 L. It features a stainless‑steel heating tube, LED temperature display, over‑heat protection and a separate pump and heating element control to prevent overheating.
This user manual includes product overview, performance features, technical specifications, step‑by‑step installation instructions, operation panel guidance, maintenance procedures, wiring diagram, and physical dimensions of the unit. This manual is written in Chinese.
| Rated Power | 4000W |
|---|---|
| Rated Voltage | AC 420V |
| Rated Current | 5.5A |
| Applicable Engine Displacement | 15~30 L |
| Disconnect Temperature Range | 5~99 °C |
| Reset Temperature Range | 0~94 °C |
| Maximum Water Pressure | 0.5 MPa |
| Protection Grade | IP44 |
| Operating Temperature Range | -40 °C~+70 °C |
| Weight | 18 kg |
The disconnect temperature can be set between 5 °C and 99 °C, and the reset temperature between 0 °C and 94 °C.
Press the test key to enter test mode; all indicator lights will turn on, confirming the heater and pump are working.
The heater is rated for a maximum water pressure of 0.5 MPa.
