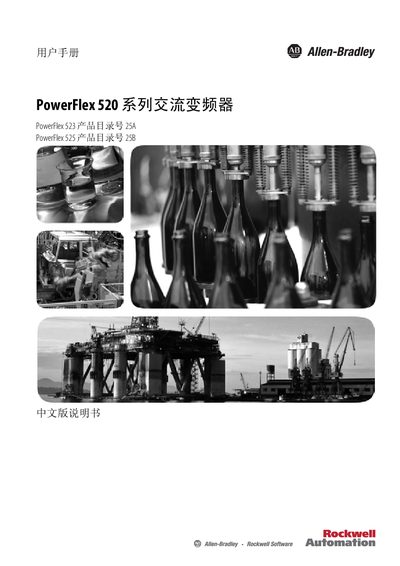

The Rockwell Automation PowerFlex 520 Series AC drive user manual provides installation, startup, programming and troubleshooting guidance.
This manual covers the PowerFlex 520 series AC drives, including the PowerFlex 523 and PowerFlex 525 models. It provides detailed instructions on installation, wiring, safety precautions, parameter configuration, and fault handling for qualified personnel.
The document also includes appendices with environmental and technical specifications, communication setup (EtherNet/IP, Modbus), encoder usage, and safety‑torque functions. Reference documents and support resources are listed at the end. This manual is written in Chinese.
| Operating temperature range | -20 °C to 50 °C (‑4 °F to 122 °F) |
|---|---|
| Maximum altitude | Up to 1 000 m (3 300 ft) standard, 4 000 m (13 200 ft) with optional fan kit |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) for frames A‑D |
| Sound pressure level (A‑weighted) | Maximum 53 dBA (frame A/B), 57 dBA (frame C), 64 dBA (frame D), 68 dBA (frame E) |
Operators must wear appropriate personal protective equipment (PPE) as indicated in the safety section.
An input fuse or input circuit breaker must be installed according to the recommended tables.
The USB port is described in the “使用 USB 端口” section of the manual.
