Rockwell Automation Stratix Managed Switches User Manual

The Rockwell Automation Stratix Managed Switches User Manual provides installation, configuration, operation, and maintenance instructions for Stratix…

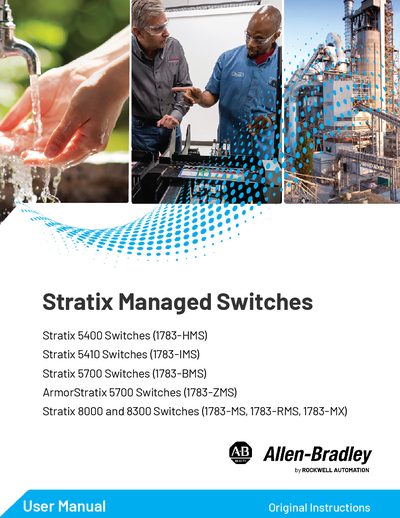

Rockwell Automation Stratix Managed Switches User Manual - cover page
Brand
Rockwell Automation
Document type
User Manual
Language
English
Pages
440
File format
PDF
File size
19.5 MB
Published
29 September, 2026
Updated
29 September, 2026
MD5 checksum
279620331C5445C7268B9C82521DE5EC
PDF
Rockwell Automation Stratix Managed Switches User Manual PDF

About this manual

This manual covers the full range of Stratix Managed Switches, including the 5400, 5410, 5700, ArmorStratix 5700, 8000 and 8300 models. It provides safety information, installation guidance, wiring requirements, and detailed configuration steps for features such as VLANs, PoE, routing protocols, and security.

The document includes chapters on getting started with Express Setup, configuring advanced switch features, monitoring status via Device Manager or Logix Designer, and troubleshooting common issues. Appendices list data types, port assignments, cable specifications, and connector pinouts.

What's inside

  • Preface
  • Chapter 1 About the Switches
  • Chapter 2 Get Started
  • Chapter 3 Configure Switch Features
  • Chapter 4 Monitor the Switch
  • Chapter 5 Troubleshoot the Switch
  • Appendix D Cables and Connectors
  • Index

Specifications

Cable type for Ethernet/PoE portsCategory 5 (Cat 5) cable
Maximum cable length for Ethernet/PoE ports100 m (328 ft)
Port speeds supported10/100/1000 Mbps Ethernet, PoE/PoE+
Alarm port connectorRJ45

Frequently asked questions

What cable is required for PoE ports?

PoE ports require a Category 5 (Cat 5) cable with a maximum length of 100 m.
