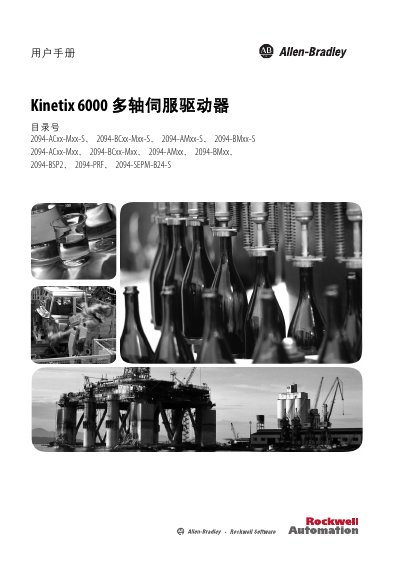

This manual provides installation, configuration, operation, and maintenance information for the Rockwell Automation Kinetix 6000 multi‑axis servo drive.
The Rockwell Automation Kinetix 6000 multi‑axis servo drive user manual guides users through system planning, hardware selection, wiring, and configuration of the drive system. It includes sections on safety, installation steps, connector data, and troubleshooting procedures.
Safety warnings, required personal protective equipment, and compliance with applicable regulations are emphasized. The manual also details firmware upgrade procedures, SERCOS communication setup, and provides wiring diagrams for power, motor, and I/O connections. This manual is written in Chinese.
| AC line filter voltage rating | 500 V AC |
|---|---|
| Maximum current capability of internal short‑circuit protection | 200,000 A |
The firmware can be upgraded using the ControlFLASH software as described in Appendix B.
Models such as 2094‑AC05‑MP5‑S (500 V AC, 30 A) are listed as suitable AC line filters.
