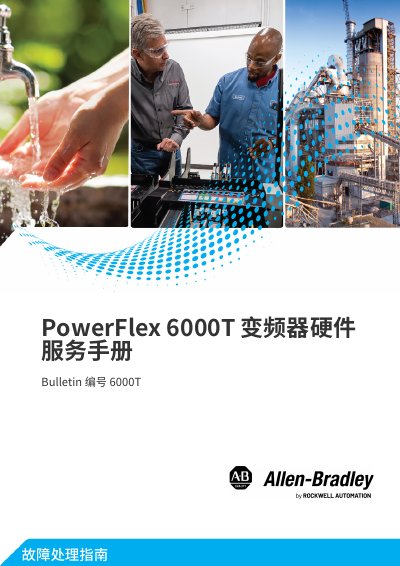

Rockwell Automation PowerFlex 6000T Inverter Service Manual

About this manual

The PowerFlex 6000T inverter service manual offers detailed guidance for qualified personnel on safe installation, configuration, operation, and maintenance of the medium‑voltage drive. It emphasizes lock‑out/tag‑out, use of proper personal protective equipment, and adherence to applicable regulations and standards.

The document includes a preventive‑maintenance schedule, component inspection and test procedures, hardware replacement steps, wiring specifications, and references to additional resources such as firmware downloads and related manuals. It is intended for engineers and technicians familiar with medium‑voltage solid‑state drives. This manual is written in Chinese.

What's inside

• Foreword
• Preparation for Testing, Maintenance, or Repair (Chapter 1)
• Preventive and Predictive Maintenance (Chapter 2)
• Component Inspection and Test Procedures (Chapter 3)
• Low‑Voltage Control Cabinet (Chapter 4)
• Isolation Transformer Cabinet (Chapter 5)
• Power‑Battery Cabinet (Chapter 6)
• Connection Checks (Chapter 7)
• Appendix A – Spare‑Part Storage

Specifications

Frequently asked questions

What safety precautions are required before servicing the PowerFlex 6000T inverter?

Only qualified personnel equipped with the correct personal protective equipment may service the unit, and lock‑out/tag‑out procedures must be followed to ensure the input breaker is open and the system is de‑energized.

Where can I find the wiring specifications for the PowerFlex 6000T?

Wiring specifications are listed in Appendix A, Table 12 of the manual.
