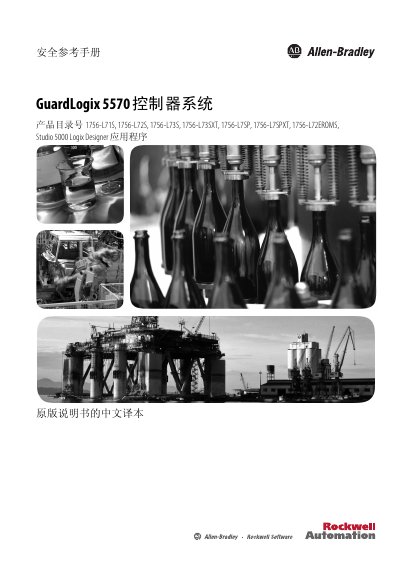

Rockwell Automation GuardLogix 5570 Controller System Safety Reference Manual

About this manual

This document is a Chinese translation of the original English user manual for the GuardLogix 5570 Controller System. It serves as a Safety Reference Manual intended for engineers responsible for developing, operating, or maintaining safety systems based on this controller using Studio 5000 Logix Designer.

The guide covers the system's components, including main controllers, safety partners, racks, and power supplies. It details the CIP security protocol, configuration procedures, programming concepts within the Studio 5000 environment, and application development lifecycle. Additionally, it provides information on monitoring system status, handling faults, reaction times, and specific safety data values. This manual is written in Chinese.

What's inside

• Safety Integrity Level (SIL) Principles
• GuardLogix Controller System Components
• CIP Security and Safety Network Numbers
• Safety Tags, Tasks, and Program Characteristics
• Safe Application Project Development
• Monitoring Status and Handling Faults

Frequently asked questions

Which software version is required to develop, operate, or maintain the GuardLogix 5570 controller system?

You must use Studio 5000 Logix Designer application version 21.000 or higher.

What safety standards and performance levels does the GuardLogix 5570 controller system meet?

The system is approved for use in safety applications meeting SIL CL 3 and Performance Level PL e 4.
