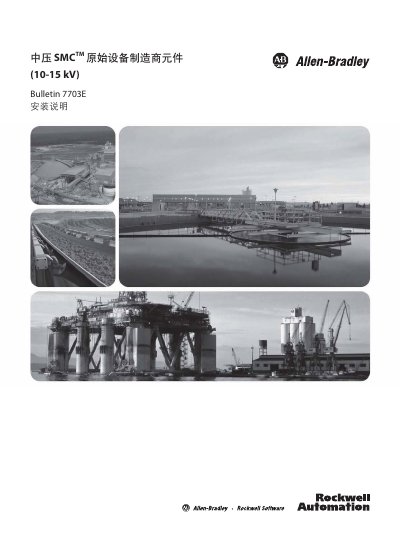

Rockwell Automation Bulletin 7703E SMC 10-15 kV Components Installation Instructions

About this manual

This manual provides installation instructions for Rockwell Automation Bulletin 7703E SMC components, which are used for medium voltage soft start solutions. The document covers the installation of PowerBrick™ units, control components, and main circuit switch equipment. It also includes information on typical wiring diagrams and final testing steps. This manual is written in Chinese.

What's inside

• Introduction
• Receiving and General Information
• PowerBrick Installation
• Control Component Installation
• Main Circuit Switch Equipment Installation
• Typical Wiring Diagrams
• Final Test Steps
• Programming
• Spare Parts
• Component Derating

Frequently asked questions

What voltage range do these components support?

These components are designed for use with 10-15 kV systems.

What specific safety measures are required when handling sensitive equipment?

You must use a grounded wristband to minimize static charge accumulation on your body.

How should modules be held during transport to prevent damage?

You must grasp the module edges and avoid touching the components or printed circuits.
