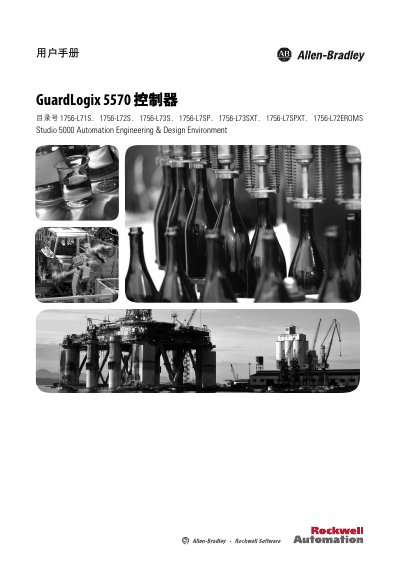

Rockwell Automation GuardLogix 5570 Controller User Manual

About this manual

This user manual covers the GuardLogix 5570 controller series, including models 1756-L71S, 1756-L72S, 1756-L73S, 1756-L7SP, 1756-L73SXT, 1756-L7SPXT, and 1756-L72EROMS. It is designed for users responsible for designing, installing, programming, or troubleshooting control systems equipped with these controllers. The document assumes the reader has basic circuit knowledge, familiarity with relay logic, and training in creating, operating, and maintaining safety systems. This manual is written in Chinese.

What's inside

• System Overview
• Installing the Controller
• Configuring the Controller
• Communicating via Network
• Adding and Configuring CIP Safety I/O
• Developing Safety Application Projects
• Monitoring Status and Handling Faults

Frequently asked questions

What programming environment is required for the GuardLogix 5570 controller?

The controller requires Studio 5000 Automation Engineering & Design Environment, version 21 or higher.

How many controller connections does the GuardLogix 5570 support?

The controller supports up to 500 controller connections.
