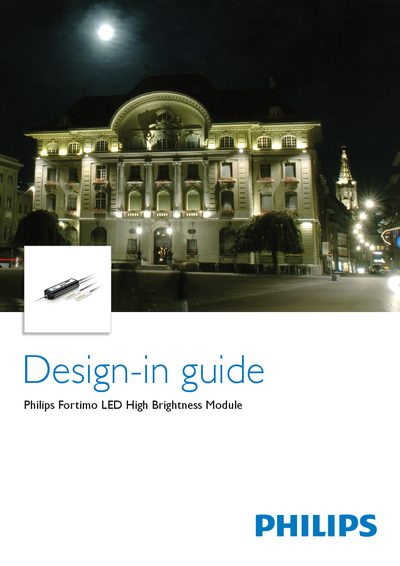

The Philips Fortimo LED High Brightness Module design‑in guide provides mechanical, optical, thermal and installation information for integrating the HBM…
This design‑in guide explains how to incorporate the Philips Fortimo LED High Brightness Module (HBM) and compatible Xitanium drivers into lighting fixtures. It covers product description, mechanical construction, dimensions, optical files, and recommended mounting practices.
Key sections include lighting characteristics, dimming effects, thermal management, safety and compliance, installation instructions, and a full specification table for the modules and drivers. The guide also provides recommendations for storage, transportation, and end‑of‑life disposal.
| Flux | ±400 lm (HBM 4000 45W/740) |
|---|---|
| Power | 45 W (HBM 4000 45W/740) |
| Thermal load | 31 W (HBM 4000 45W/740) |
| CCT | 4000 K (HBM 4000) |
| Color rendering (CRI) | > 70 |
| Max case temperature | 75 °C |
| Lifetime at 70 °C | ≥50 000 h |
| IP rating | IP66 |
| Input voltage (driver) | 120/200/240/277 V |
| Max output power (driver) | 165 W (150 W type) |
| Connector pins (module) | 7 |
The module should be stored at temperatures between –40 °C and +85 °C.
The module uses a connector with seven pins.
The module can be used with Xitanium drivers of type 75 W or 150 W.
