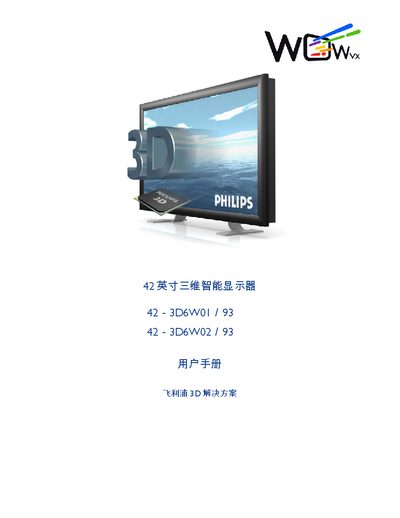

User manual for Philips 42‑inch 3D display models 42‑3D6W01/93 and 42‑3D6W02/93, covering features, specifications, installation, and operation.
The Philips 42‑inch 3D display provides a multi‑view lens system that delivers automatic stereoscopic vision for multiple viewers. It supports a 2D+depth‑information input format and includes built‑in rendering hardware, a 3DS media player, and control tools for adjusting parameters such as contrast and brightness.
The manual details safety warnings, installation procedures (including optional wall‑mount or ceiling brackets), software installation requirements, environmental limits, and technical specifications such as resolution, brightness, power consumption, and physical dimensions. This manual is written in Chinese.
| Panel type | TFT LCD |
|---|---|
| Resolution | 1920 x 1080 |
| Contrast ratio | 1500:1 |
| Brightness | 500 cd/m² |
| Power consumption (operating) | 230 W |
| Standby power consumption | 2.5 W |
| Dimensions (W×H×D) | 1017 x 610 x 128 mm |
| Operating temperature range | 0 °C to 35 °C |
| Interface | DVI‑D (single link) |
The display consumes 230 W during operation and 2.5 W in standby mode.
The display measures 1017 mm width, 610 mm height, and 128 mm depth.
The display can be installed on a wall, ceiling, or used as a free‑standing unit with an optional bracket (part number 42‑WM).
A viewing distance of about 3 meters is recommended for the best 3D experience.
