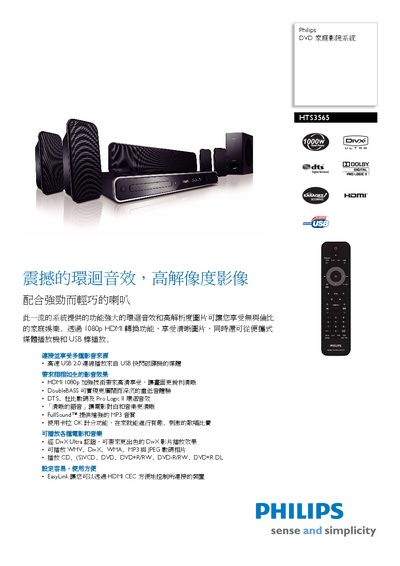

This document introduces a powerful home entertainment system with stunning surround sound and high-resolution images. The system features 1080p HDMI conversion for clear picture quality, and supports playback from USB flash drives and portable media players.
This manual describes the HTS3565 DVD Home Theatre System, highlighting its high‑definition video playback, surround‑sound audio formats (DTS, Dolby, Pro Logic), and convenient features such as EasyLink HDMI‑CEC control and USB 2.0 playback. It also lists the supported media types, including DVD‑Video, CD, MP3, WMA, and various video codecs like DivX Ultra.
The document includes detailed specifications for audio output power, sampling rates, frequency response, and power requirements, as well as physical dimensions, weight, and the accessories supplied. Connection options cover HDMI, USB, S‑Video, composite video, coaxial audio, FM antenna, and front/rear audio inputs, enabling flexible integration into a home entertainment setup. This manual is written in Chinese.
| Audio Output Power (RMS) | 4 × 125 W |
|---|---|
| Audio Sampling Rate | 24 bit / 192 kHz |
| Frequency Response | 180 – 14000 Hz |
| Signal‑to‑Noise Ratio | > 65 dB |
| Power Supply | 120‑230 VAC, 50‑60 Hz |
| Power Consumption | 180 W |
| Weight (incl. packaging) | 14.5 kg |
| Dimensions (W × H × D) | 435 × 58 × 360 mm |
| Audio Channels | 4 |
| USB Interface | High‑speed USB 2.0 |
It supports MPEG‑1, MPEG‑2, DivX 3.11 through DivX Ultra, and WMV video formats.
Use the EasyLink feature via HDMI‑CEC to control connected devices directly from the system.
The system delivers 4 × 125 W RMS output and supports DTS, Dolby, and Pro Logic surround‑sound formats.
It requires a 120‑230 VAC, 50‑60 Hz power supply and consumes about 180 W during operation.
