The Philips 105S5 monitor installation guide provides safety precautions, setup steps, controls, OSD menu, specifications, and troubleshooting.

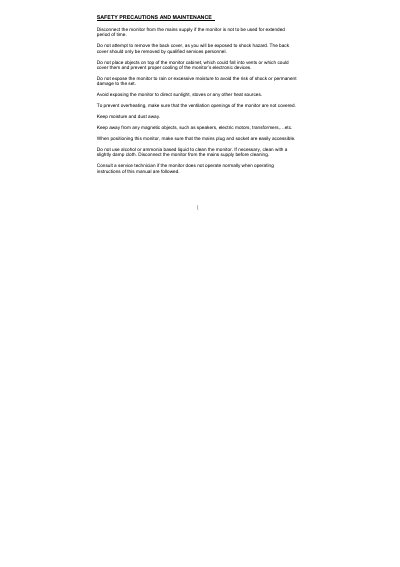

This manual begins with safety precautions and maintenance advice, then introduces the Philips 105S5 colour monitor and its compatibility with IBM PC and PS/2 systems. It outlines the monitor’s key features such as automatic frequency scanning, unlimited display colours, and on‑screen‑display controls.
The guide details the installation process, including assembling the tilt/swivel base, connecting power and signal cables, and operating the power switch. It explains the control panel, adjustment buttons, OSD menu options, power‑management indicators, pin assignments, technical specifications, and a troubleshooting section for common issues like no picture or image instability.
| Size | 15" diagonal (14" viewable) |
|---|---|
| Deflection Angle | 90 degrees |
| CRT Phosphor Pitch | 0.28 mm |
| Maximum Resolution | 1024×768 |
| Video Bandwidth | 75 MHz |
| Horizontal Sync | 30–54 kHz |
| Vertical Sync | 50–120 Hz |
| Video Input Signal | RGB analog 0.7 Vp‑p, 1 Vp‑p/75 Ω |
| Display Colours | Unlimited |
| Display Area | 270 mm × 202 mm (recommended) |
Press the power switch to turn the monitor on; the indicator lights up. Press the same switch again to turn it off.
Verify that the power cord is connected, the power switch is on, the signal cable is properly attached, and the monitor is not in power‑save mode. Connect or re‑connect cables as needed and press any key or move the mouse to exit power‑save.
