This document provides safety precautions and maintenance guidelines. It includes instructions for unplugging the monitor, cleaning the screen, troubleshooting, and frequently asked questions about installation locations.

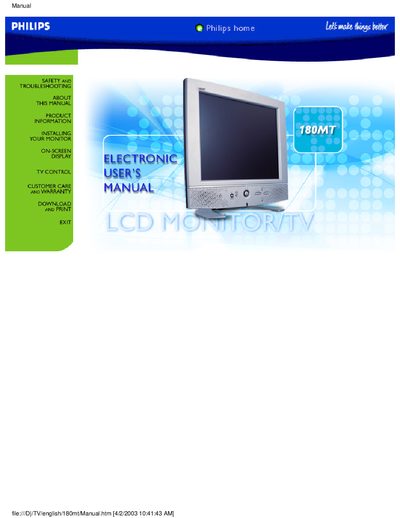

This electronic user’s guide covers safety precautions, installation steps, on‑screen display settings, TV control functions and warranty details for the Philips 180MT 18‑inch LCD Monitor/TV. It also includes a pixel‑defect policy and a list of worldwide consumer information centres.
Technical data such as screen size, resolution, refresh rates, power consumption, physical dimensions and connector pin assignments are presented, along with instructions for cleaning, power‑saving features and troubleshooting tips.
| Screen size | 18.1" visual |
|---|---|
| Resolution | 1280 x 1024 |
| Vertical refresh rate | 56Hz‑75Hz |
| Contrast ratio | 300:1 (typ.) |
| Brightness | 300 cd/m2 (typ.) |
| Response time | ≤30 ms (typ.) |
| Power consumption | 68 W (typ.) |
| Dimensions (W×H×D) | 452 × 452 × 200 mm |
| Weight | 6.3 kg |
| Video interfaces | D‑sub, S‑Video, TV‑RF, SCART |
Unplug the monitor, then wipe the screen with a dry cloth; never use alcohol, solvents or ammonia‑based liquids.
The monitor uses about 68 W of power under typical conditions.
It includes three years of free labor and parts, plus a one‑year exchange warranty.
