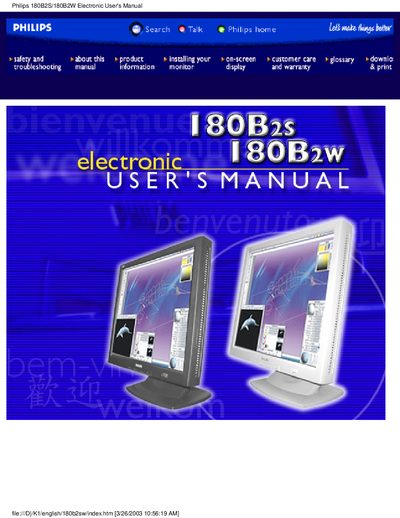

This manual provides instructions for the safe use and maintenance of the Philips 180B2S/180B2W electronic display, including installation locations, FAQs, troubleshooting, regulatory information, and other related information.
This electronic user manual is intended for anyone who uses the Philips 180B2S/180B2W LCD monitor. It covers safety precautions, installation locations, and basic handling to prevent shock, mechanical damage, and after‑image issues.
The guide details the monitor’s features and technical specifications, including screen size, resolution, contrast, brightness, viewing angles, and power‑saving functions, as well as warranty and consumer‑service contact information.
| Screen size | 18.1" / 46 cm |
|---|---|
| Resolution | 1280 × 1024 pixels |
| Pixel pitch | 0.280 × 0.280 mm |
| Contrast ratio (typ.) | 350 |
| Brightness (typ.) | 250 cd/m² |
| Vertical refresh rate | 56 Hz‑76 Hz |
| Video dot rate | 135 MHz |
| Input impedance (video) | 75 Ω |
| Power consumption (active) | < 60 W |
| Viewing angle (upper) | > 80° (typ.) |
| Operating temperature | 5‑35 °C |
| Operating humidity | 20‑80 % RH |
The monitor supports a maximum resolution of 1280 × 1024 at 75 Hz.
