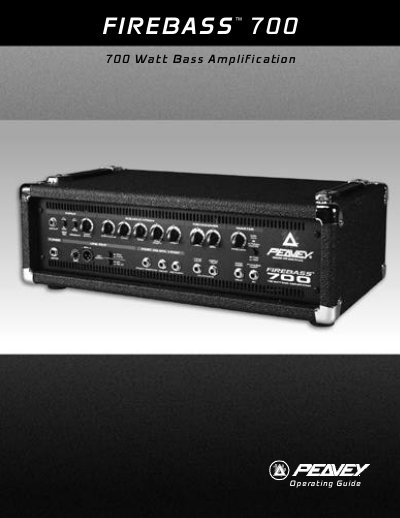

Operating guide for the Peavey FireBass 700 bass amplifier with panel descriptions, settings, and specifications.
The Peavey FireBass 700 user manual provides detailed information on the front and rear panel controls, safety warnings, and recommended settings for optimal tone shaping. It explains the functions of each knob, switch, and jack, including the three‑band active EQ, contour control, and DDT™ compression.
Technical specifications such as rated power, frequency response, harmonic distortion, and physical dimensions are listed, along with warranty information and service instructions for qualified technicians.
| Rated Power (2 Ω) | 700 W RMS |
|---|---|
| Rated Power (4 Ω) | 475 W RMS |
| Power Consumption | 1,200 W @ 120 VAC |
| Frequency Response | -1 dB, 20 Hz to 30 kHz |
| Total Harmonic Distortion | < 0.25 % (typical) |
| Weight | 50.9 lb (22.65 kg) |
The minimum speaker load impedance is 2 Ω (or two 4 Ω speakers in parallel).
If hum is present with the switch centered, move the ground polarity switch to the positive or negative position to minimize hum.
It reduces the input signal level by 10 dB, useful for instruments with very high output.
When engaged, it disables the DDT™ power‑amp compression, allowing the amp to operate without the protection circuit.
