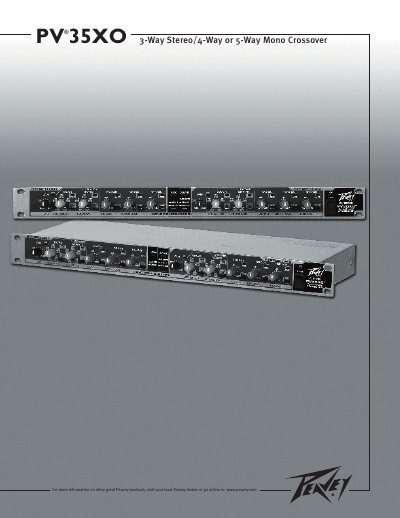

The Peavey PV35XO crossover manual provides safety warnings, installation guidance, and detailed control descriptions for stereo and mono operation.
This manual begins with extensive safety instructions, warning about dangerous voltage, proper grounding, and environmental hazards. It stresses keeping the unit dry, avoiding blockage of ventilation, and using only qualified service personnel for repairs.
The remainder of the guide explains the PV35XO’s controls: input gain, crossover selectors, mute switches, mode selection between 3‑way stereo and 5‑way mono, and the optional summed‑sub output. Frequency ranges, gain limits, and the function of the x10 range switch are detailed for precise system tuning.
| Channels | dual‑channel |
|---|---|
| Filter Slope | 24 dB per octave |
| Frequency Response | 20 Hz – 20 kHz |
| Input Gain Range | -12 dB to +12 dB |
| Crossover Frequency Range | 80 Hz – 900 Hz (or 800 Hz – 9 kHz with x10 switch) |
The crossover uses XLR inputs and outputs for balanced operation.
Engaging the Range (x10) switch multiplies the selectable range to 800 Hz – 9 kHz.
The Mode switch selects between 3‑way stereo and 5‑way mono; a red LED indicates mono mode.
It combines the sub‑frequency outputs of both channels into a single output, reducing the number of amplifiers needed.
