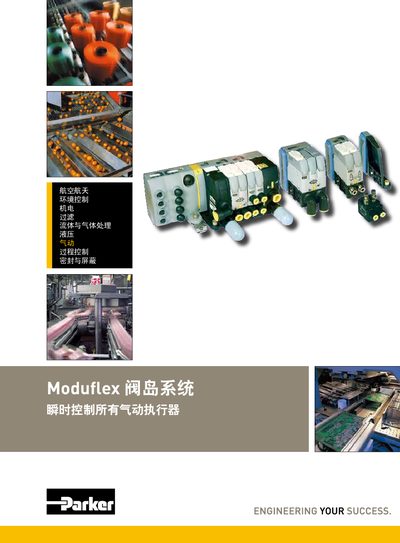

This document introduces the Parker Moduflex P2M valve island system, a modular pneumatic automation solution featuring V, T, S, and P series configurations…
The Parker Moduflex valve island system is a modular solution for pneumatic automation control, offering high flexibility and adaptability for applications in aerospace, environmental control, filtration, and process control. The system includes four distinct series: the innovative V Series, the adaptable T Series, the versatile S Series, and the lightweight P Series, each designed to meet specific application needs.
The P2M model is highlighted as a lightweight option suitable for hand-held tool applications, with a valve manifold weighing only 800g for 8 electrical inputs and 8 pneumatic outputs. The system utilizes advanced ceramic switching technology for durable 4/2 and 3/2 valves and supports various tube sizes (4mm to 10mm) to accommodate cylinder diameters up to 100mm. This manual is written in Chinese.
| Weight (8 inputs/8 outputs) | 800g |
|---|---|
| Max Cylinder Diameter | 100mm |
| Tube Sizes Supported | 4, 6, 8 and 10mm |
| Protection Rating | IP65-67 |
The valve manifold with 8 electrical inputs and 8 pneumatic outputs weighs 800g.
A single valve island can accommodate all cylinders with a maximum bore of 100mm.
The quick-connect pneumatic fittings have connection tube outer diameters of 4, 6, 8, and 10mm.
A Specification 2 valve has a maximum flow of greater than 1200Nl/min.
