Parker Filtration ASIC Performer Pressure Transducers and Transmitters is a pressure sensor and transmitter manufactured by Parker Filtration. The sensor has high accuracy and repeatability. It uses stainless steel material and can work normally in a temperature range of -40℃ to +125℃.

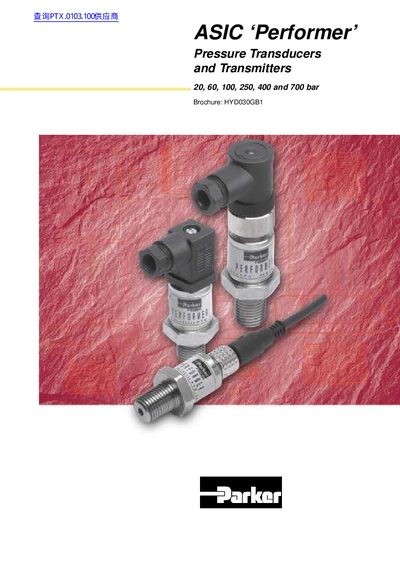

The document introduces the Parker Filtration ASIC 'Performer' series of Pressure Transducers (PTD) and Transmitters (PTX). This range utilizes a high-grade Stainless Steel element coated with insulative and alloy materials to overcome issues like gauge creep found in traditional sensors. The design features Application Specific Integrated Circuitry (ASIC) for high stability and low drift over a wide temperature range of -40°C to +125°C.
The brochure lists six standard pressure ratings: 20, 60, 100, 250, 400, and 700 bar. It provides detailed electrical specifications, including supply voltage ranges (9-35V DC for transducers, 11-35V DC for transmitters), output options (1-6Vdc or 4-20mA), and various thread forms such as G1/4 BSP, NPTF, UNF, and M12. A comprehensive table of part numbers is provided to assist in selecting the correct configuration.
| Pressure Ranges | 20, 60, 100, 250, 400 and 700 bar |
|---|---|
| Functional Temp Range | -40°C to +125°C |
| Supply Voltage (Transducer) | 9 - 35v DC |
| Supply Voltage (Transmitter) | 11- 35v DC |
| Output Response (Transducer) | 0-5V and 1-6V outputs |
| Output Response (Transmitter) | 2-wire 4-20mA output |
| Initial Calibration Accuracy | +/- 1% Zero, +/- 1% Span |
The minimum over pressure is rated pressure times 1.5 min.
The devices can operate over a wide thermal range from -40°C to +125°C.
The Transducer current draw is 8mA.
The maximum recommended tightening torque is 30Nm.
