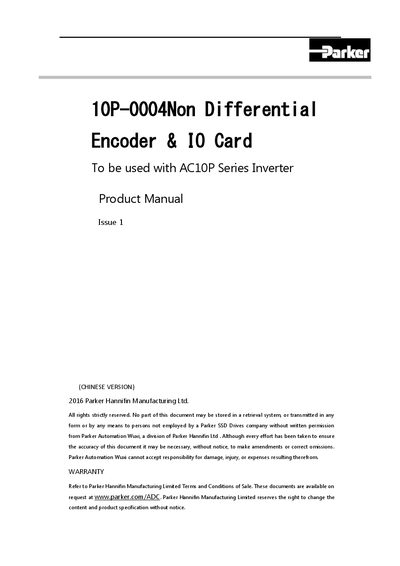

This manual covers the installation, wiring, and usage of the Parker 10P-0004 Non-Differential Encoder & IO Card for AC10P Series Inverters.
The Parker 10P-0004 is an expansion card designed for use with the AC10P Series Inverter. It provides four digital input (DI) channels and two relay output channels. Additionally, it features a non-differential encoder interface capable of processing orthogonal encoder signals and generating frequency-divided output signals. This manual is written in Chinese.
| Digital Inputs | 4 channels |
|---|---|
| Relay Outputs | 2 channels |
| Relay Output Current (AC) | 12A/125VAC |
| Relay Output Current (DC) | 7A/30VDC |
| Frequency Division Range | 1 to 62 |
The card supports collector open and push-pull output encoder signals.
The coefficient is determined by the 5-bit DIP switch on the card.
The shielded cable length should preferably not exceed 30 meters.
