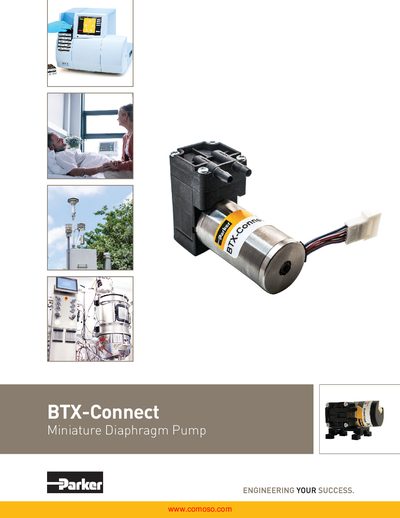

This document details the Parker BTX-Connect miniature diaphragm pump, covering specifications, motor control options, mechanical drawings, and applications…
The Parker BTX-Connect is a next-generation miniature diaphragm pump designed for high performance and reliability in precision fluidic applications. It features innovative 'connected' brushless motor technology with digital communication capabilities, ultra-low vibration, and fail-safe design elements including over-current and temperature shut-down protection.
Available in single or dual head configurations (pressure only, vacuum only, or combined), the pump supports various control methods such as On/Off, PWM, 0-5V analog input, and UART serial communication. The document provides detailed physical properties, performance curves, mechanical drawings with dimensions, and compliance information for medical standards.
| Maximum Unrestricted Flow (Single Head) | Up to 6 LPM |
|---|---|
| Maximum Unrestricted Flow (Dual Head) | Up to 11 LPM |
| Pressure Range (Continuous Duty) | Up to 30 PSIg (2 Bar) |
| Vacuum Range (Continuous Duty) | Up to -22 inHg (-558 mmHg) |
| Operating Temperature | 41 to 122°F (5 to 50°C) |
| Storage Temperature | -4 to 212°F (-20 to 100°C) |
| Motor Type | Brushless (Slotted or Slotless) |
| Rated Life (Brushless Motor) | 15,000 Hours |
The motor control feature is factory selected in four speed control modes: On/Off control, PWM input, 0-5Vdc input, or UART Serial port mode.
Barbs are sized for 1/8" (3 mm) ID tubing with a durometer of 70-80 recommended.
Yes, the pump is RoHS, REACH, and CE compliant.
