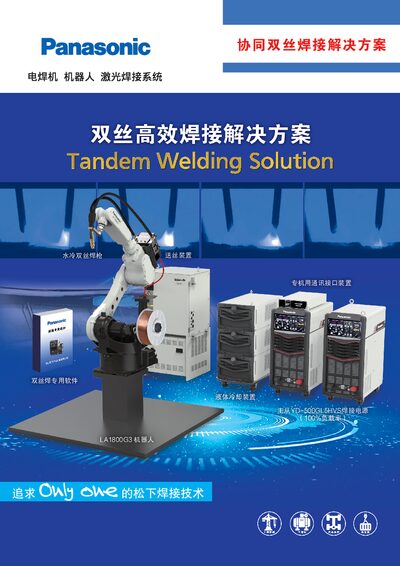

The Panasonic LA1800G3 dual‑wire welding system product leaflet details specifications, features, components and integration options.
The LA1800G3 is a dual‑wire welding solution that includes a high‑performance welding power source, wire feeding devices, a water‑cooled dual‑wire gun, dedicated software, robot integration and communication interfaces. It is designed for efficient, stable arc welding with adjustable parameters for various applications.
Key technical data such as three‑phase 380 V input, 500 A rated output current, and support for 1.0‑1.4 mm wire diameters are provided, along with dimensions (735×380×875 mm) and a weight of 110 kg. The system offers functions like phase adjustment, dual‑pulse operation, constant arc length, and master‑slave mode switching, enabling high‑quality welds and reduced spatter. This manual is written in Chinese.
| Rated input voltage | Three‑phase AC 380 V, 50/60 Hz |
|---|---|
| Rated input capacity | 29.9 kVA / 23.9 kW |
| Rated output current | 500 A |
| Rated output voltage | 39 V |
| Load continuous rate | 100 % |
| Output current range (resistive load) | 60‑550 A |
| Output voltage range (resistive load) | 17‑39 V |
| Supported wire diameters | 1.0 mm / 1.2 mm / 1.4 mm |
| Dimensions (W×D×H) | 735 mm × 380 mm × 875 mm |
| Weight | 110 kg |
The system is rated for a maximum output current of 500 A.
It supports welding wires with diameters of 1.0 mm, 1.2 mm, and 1.4 mm.
The unit measures 735 mm wide, 380 mm deep, and 875 mm high.
