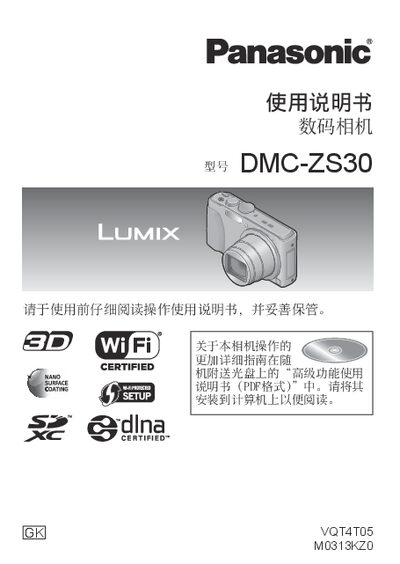

Panasonic DMC‑ZS30 digital camera user manual with safety tips, operation instructions, and specifications.
This manual provides safety precautions, preparation steps, and a detailed description of the DMC‑ZS30’s components, touch controls, battery handling, and SD‑card usage. It also covers menu settings, shooting modes, video recording, image playback, and how to delete files.
Additional sections explain how to connect the camera to a TV via HDMI, use Wi‑Fi functions, and install the optional software supplied on the included CD. The specifications page lists the sensor, lens, power consumption, dimensions, and other technical data. This manual is written in Chinese.
| Effective Pixels | 18.1 MP |
|---|---|
| Image Sensor | 1/2.3" MOS |
| Optical Zoom | 20× |
| Focal Length | 4.3‑86 mm (35 mm equiv. 24‑480 mm) |
| Maximum Aperture | F3.3‑F6.4 |
| Power Consumption (shooting) | 1.7 W |
| Power Consumption (playback) | 1.1 W |
| Battery Voltage | 3.6 V |
| Battery Capacity | 1250 mAh |
| Dimensions (W×H×D) | 108.3 mm × 58.9 mm × 27.7 mm |
| Weight (with battery & card) | ≈197 g |
| Wi‑Fi Standard | IEEE 802.11b/g/n |
Turn the camera off and wait about two hours; the fog will disappear as the camera acclimates to the temperature.
Use the supplied AC adapter (Panasonic VSK0770) rated 110‑240 V, 5 V / 800 mA output.
