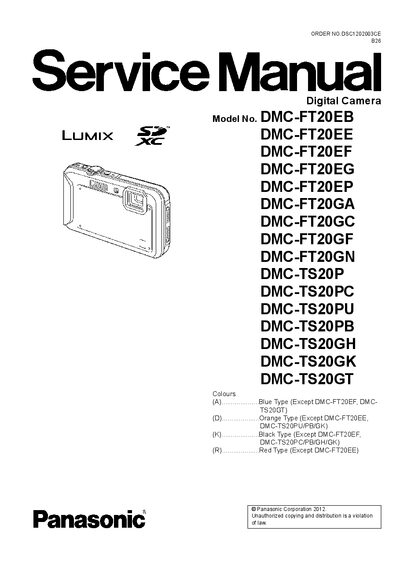

Panasonic service manual for DMC-FT20 and DMC-TS20 digital cameras, covering safety, specifications, disassembly, troubleshooting, and wiring diagrams.
This service manual provides technical information for service personnel working on Panasonic DMC-FT20 and DMC-TS20 digital cameras. It includes safety precautions, warnings, and detailed procedures for disassembly, assembly, adjustments, and maintenance.
The document contains sections on service navigation, specifications, location of controls, service mode, troubleshooting, required tools, block diagrams, wiring connection diagrams, and a complete parts list. It also describes waterproof and shock performance, battery handling, and environmental considerations.
| Waterproof rating | IPX8 and IP6X |
|---|---|
| Maximum drop test height | 1.5 m (5 feet) |
| Lithium battery type | ML-421S/DN |
| Leakage‑current hot‑check limit | 0.75 V RMS |
It is tested to survive drops from a height of 1.5 m (5 ft) onto 3 cm (0.1 ft) thick plywood.
