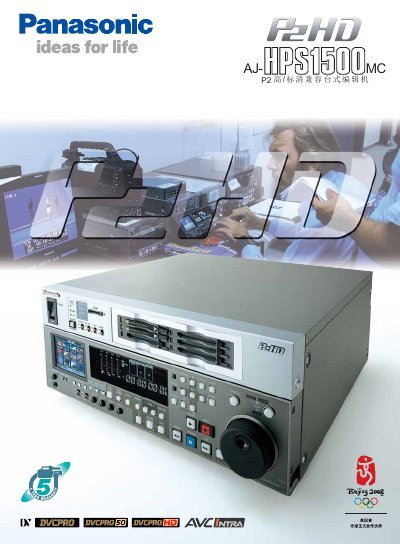

Panasonic AJ-HPS1500 P2 High/SD Compatible Desktop Editor User Manual

This manual covers the Panasonic AJ-HPS1500 desktop editor, detailing its high/standard definition compatibility, recording formats, and interface…

Brand: Panasonic
Category: Monitoring Equipment
Document type: User Manual
Language: Chinese
Pages: 6
File format: PDF
File size: 1 MB
Published: 08 February, 2012
Updated: 24 October, 2026
Model: AJ-HPS1500
MD5 checksum: FB036AB9214A890555D96A3B91983CDC
PDF: Panasonic AJ-HPS1500 P2 High/SD Compatible Desktop Editor User Manual PDF

About this manual

The Panasonic AJ-HPS1500 is a high/standard-definition compatible desktop editor designed to lead in program production and broadcast workflows. It features six P2 card slots for flexible signal capture and playback list creation, supporting various video formats including DVCPRO HD and AVC-Intra (with optional encoder). The device allows recording and playback of both HD (1080i/720p) and SD (576i) materials with support for 50Hz broadcast standards. This manual is written in Chinese.

What's inside

High/SD Compatible Recording
Up/Down Conversion
AVC-Intra Decoding Option
P2 Card Slots and Metadata
Playback List Editing
IT Interfaces (USB/Ethernet)
Broadcast System I/O
System Applications

Specifications

Audio Channels	8 embedded channels (HD), 4 channels (SD mode)
P2 Card Slots	6 slots
USB Interface	USB 2.0
Ethernet Interface	100Base-T
Weight	14kg
Dimensions (WxHxD)	424 mm x 175mm x 415mm

Frequently asked questions

Does the AJ-HPS1500 support AVC-Intra?

Yes, it supports the new AVC-Intra decoding option via an optional encoder card (AJ-YBX200MC).

How many P2 card slots does the AJ-HPS1500 have?

The device is equipped with six P2 card slots.

What video formats can be recorded in SD mode?

It supports recording and playback of DVCPR050/DVCPRO or DV format materials.
